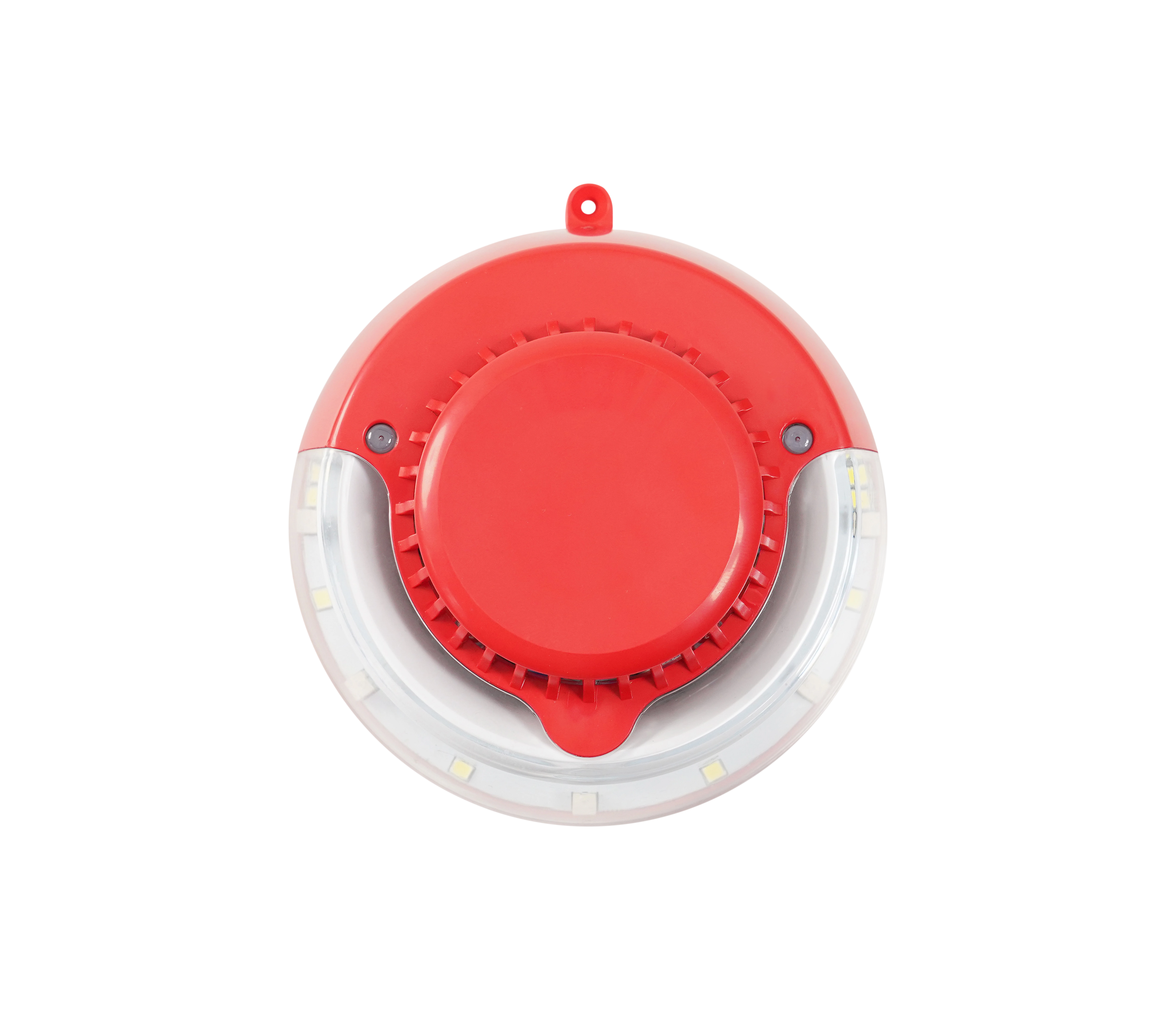

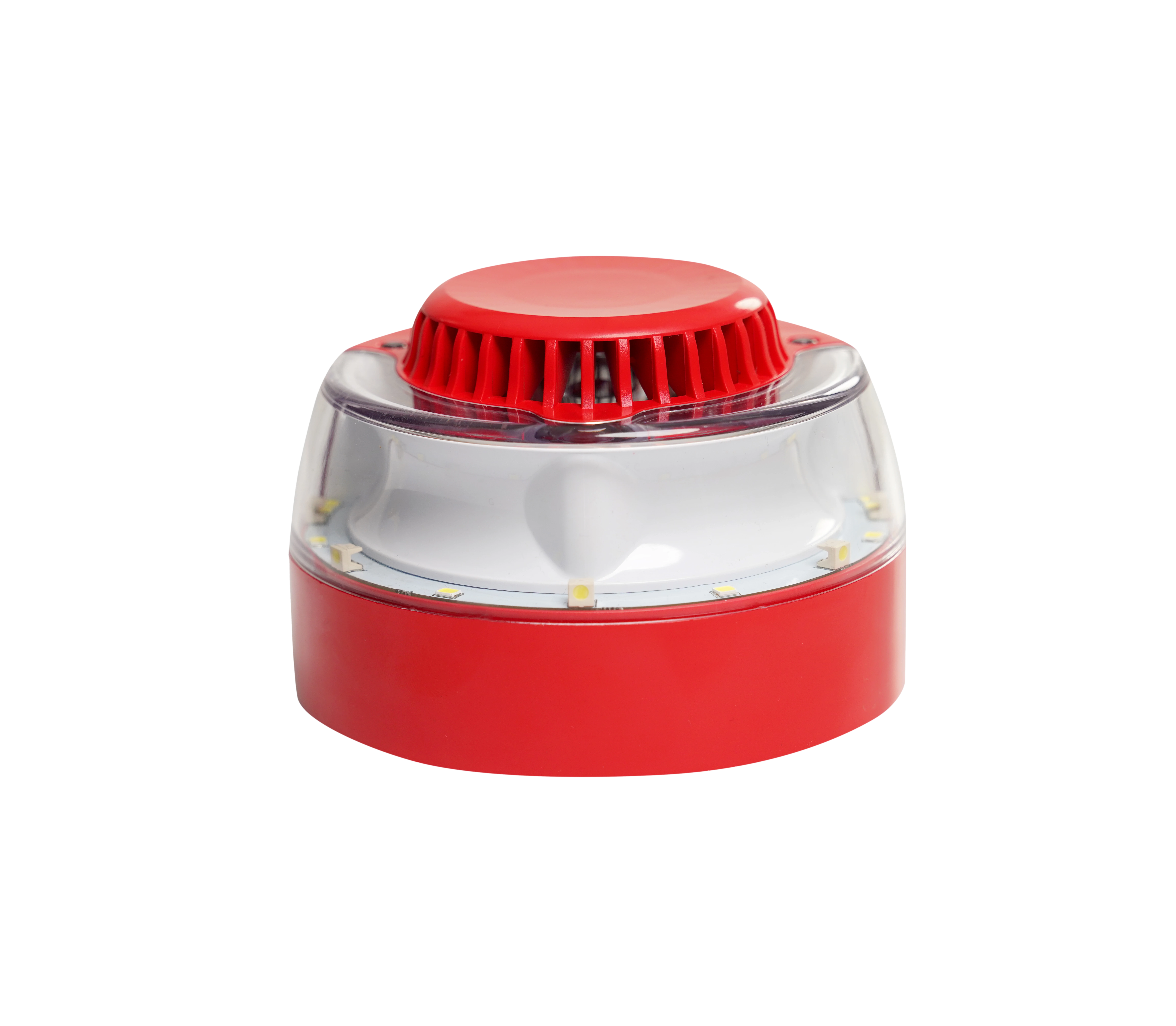

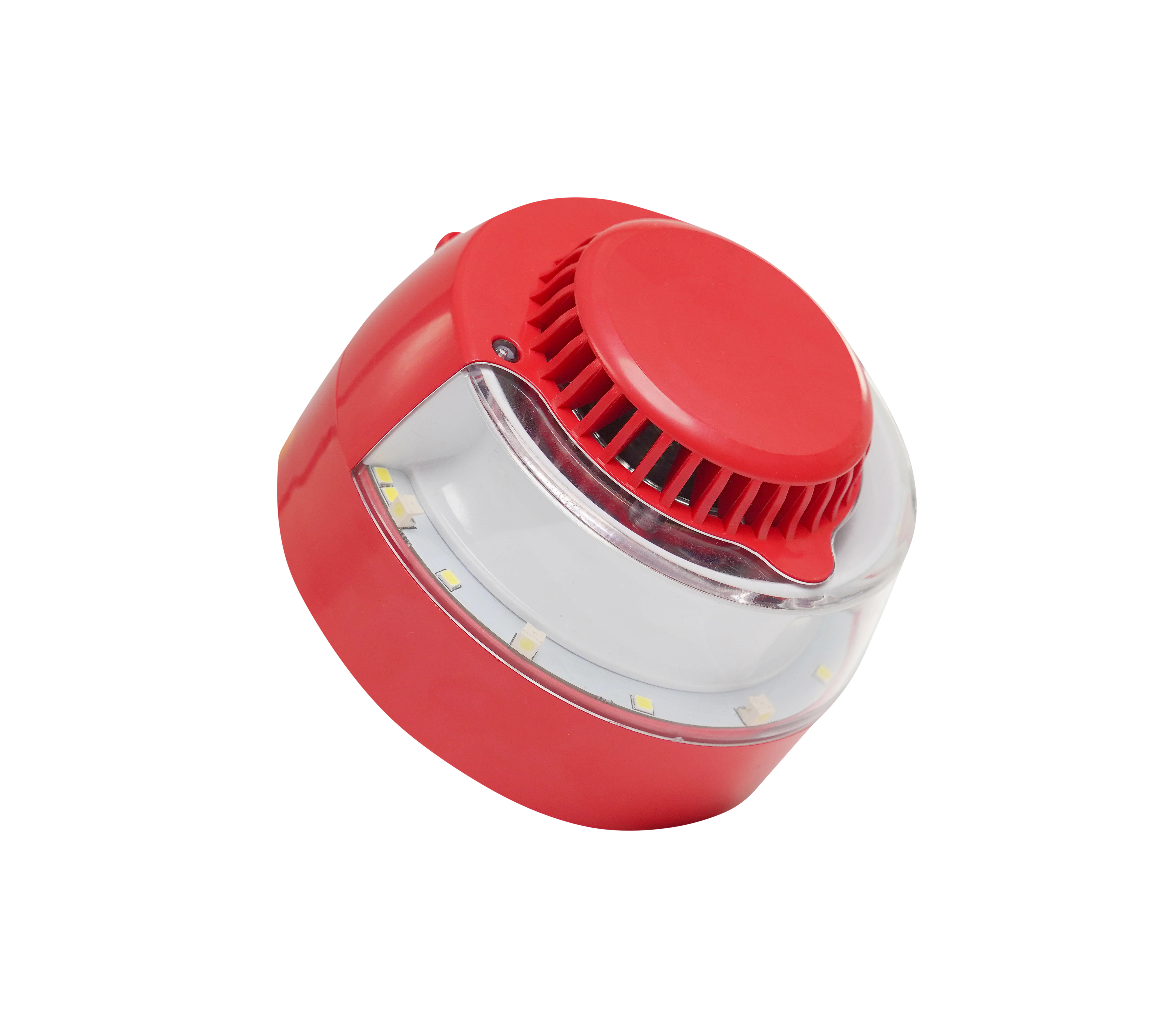

TFS-4192 R/W Conventional Fire Alarm Sounder and Beacon

TFS-4192R

Complies with EN54-3 and EN54-23 standards.

• Suitable for wall mounting

• 100dB high sound level

• IP21C protection class

• UL94 non-flammable plastic material

• 42 different tone options

• It can be used as Sounder and Beacon / Only Beacon / Only Sounder

Power Input	24VDC – 27VDC
Beacon Rate	0,5/1 Hz
IP Class	IP21C
Operating Temperature Range	-10°C ~ +55°C
Humidity	@ +40°C between %0 to %95 Max
Sound Level	100 dB±5 dB (@1meter)
Sound Tone	24 Different Tone
Play Mode	Sounder and Beacon / Only Beacon / Only Sounder
Dimensions (Base Included)	Ø:106,6mm, h:69.5mm
Used Cable Cut	Shield fire cable (0.8mm ² ~ 2.5mm ²)
Weight (Base Included)	210 gram
Coverage Area	W-2,4-5
Usage Area	Internal use in building / Type A device

Conventional Fire Alarm System
