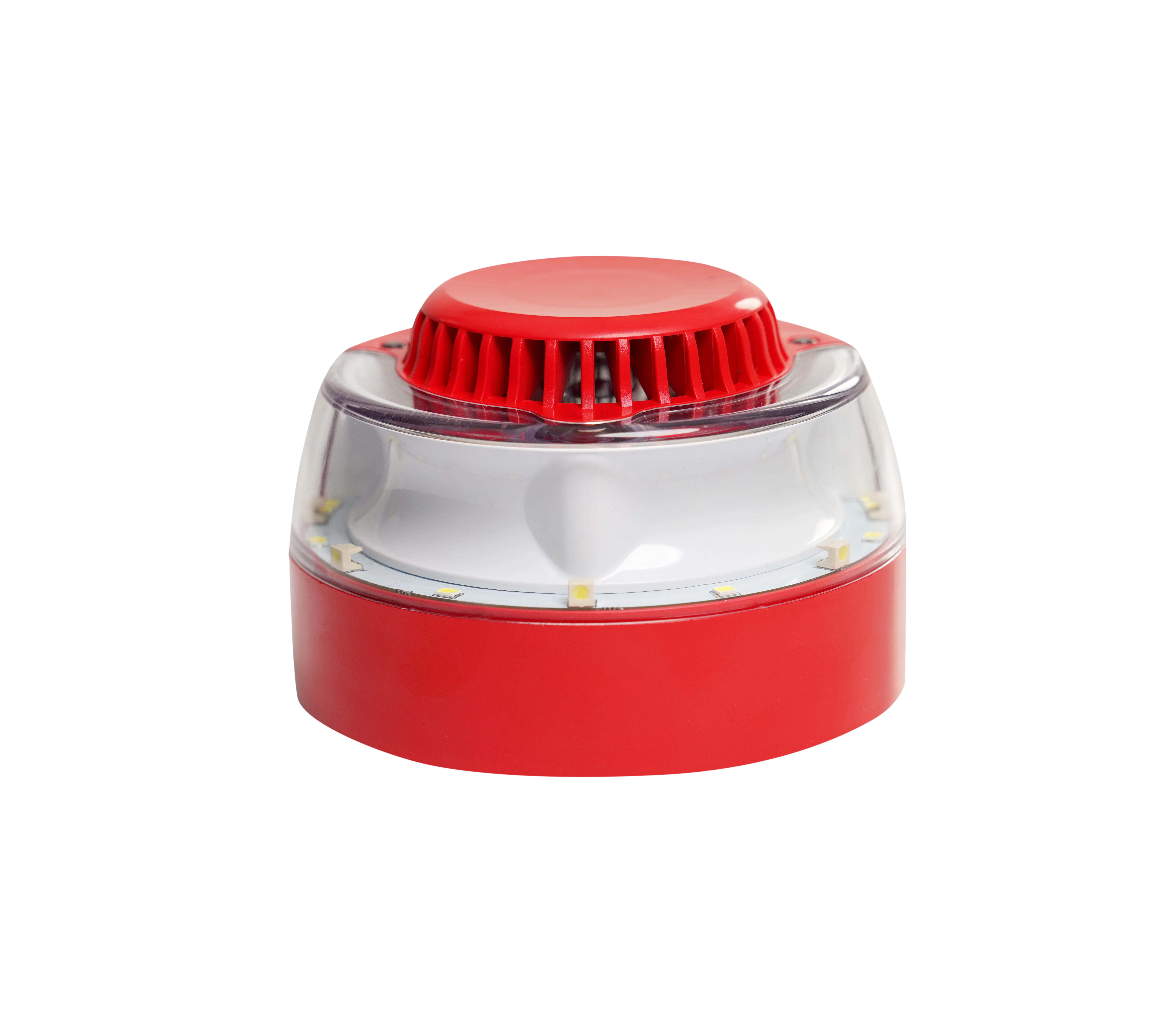

TFS-2282 Intelligent Addressable Sounder and Beacon with Built-In Isolator

TFS-2282

TFS-2282 Intelligent Addressable Sounder and Beacon with Built-In Isolator

Teknim TFS-2282 is an internal usage fire alarm sounder with beacon. It can be powered by loop line and has built-in isolator to protect the loop against shortcuts. TFS-2282 has aesthetic design and low power consumption and are suitable for use with all Teknim addressable fire alarm control panels.

  • General Features
  • Downloads
Where to Buy?

• EN54-3, EN54-23 and EN54-17 Certified

• Siren and Beacon / Beacon only / Siren only operating modes

• Selectable sound level and beacon frequency

• Sound level 92 dB±5 dB

• Light coverage volume W-2,4-5

• Teknim addressable fire alarm control panels with programmable settings

• 24 tones available (22 international 2 special tones)

• Protection class IP21C

• UL94 V-0 flame-retardant material

• Suitable for wall mounting

• Screw locking feature against tampering

Adressable Fire Alarm System
PDF
TFS-2282 Intelligent Addressable Sounder and Beacon with Built-In Isolator Datasheet EN
