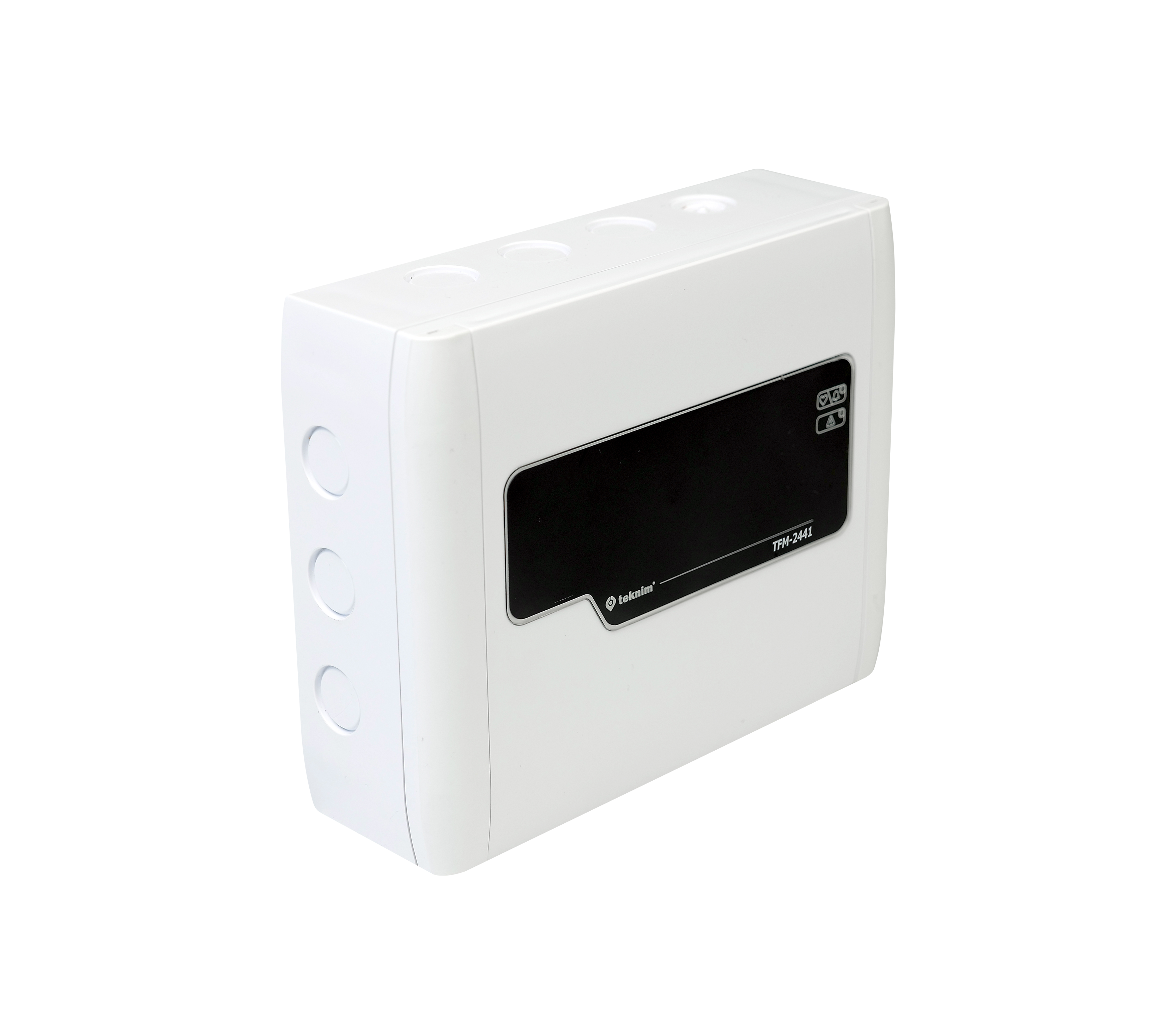

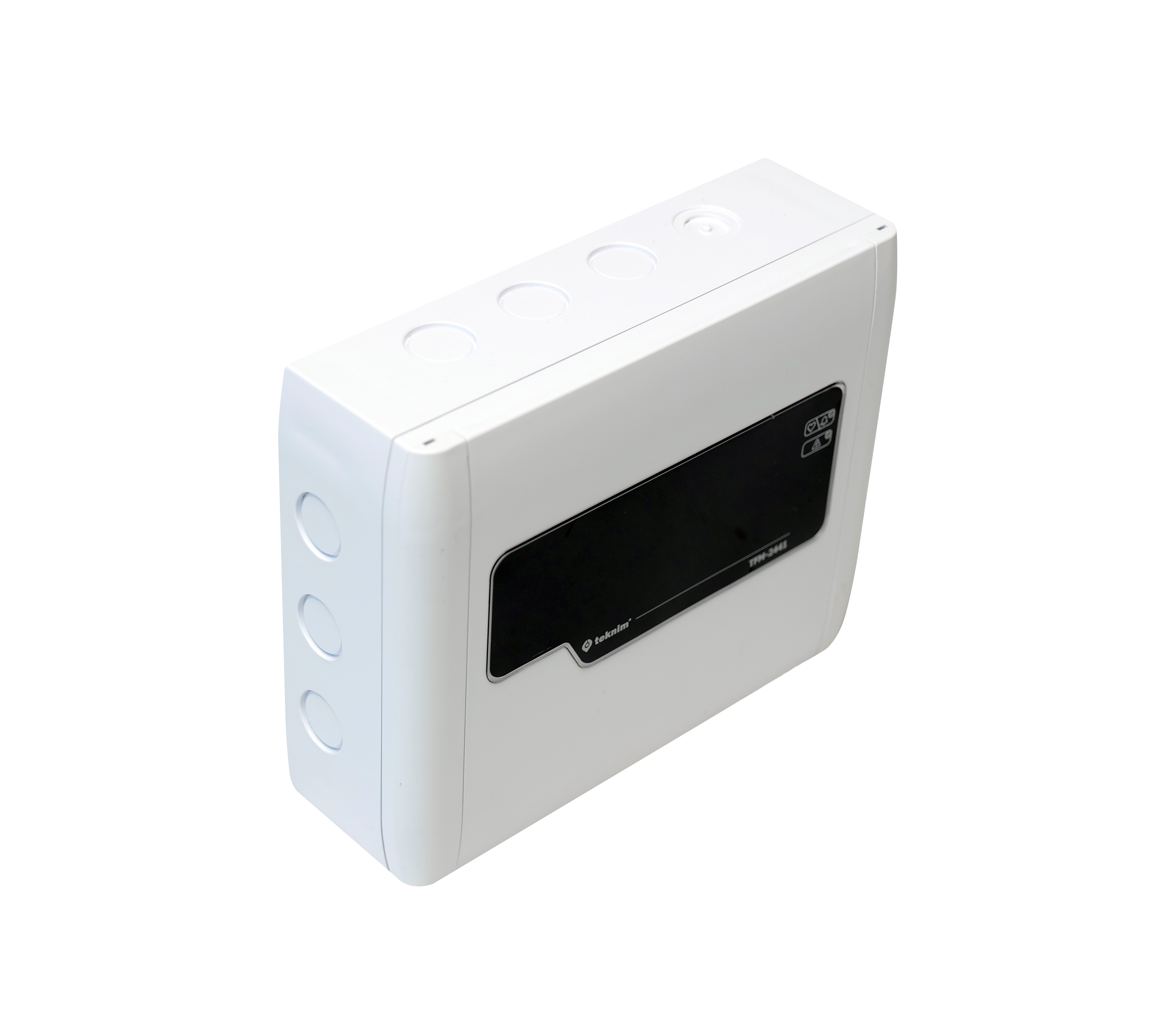

Intelligent Addressable Built-In Isolator Dry Contact Four Input / Four Output Module

TFM-2441

Intelligent Addressable Built-In Isolator Dry Contact Four Input / Four Output Module

TFM-2441 used with Teknim series addressable fire alarm panels and supports four input and output. The device is also supporting built-in isolator to protect the loop line against short circuit.

General Features
Technical Specifications
Downloads

4 Inputs / 4 Dry Contact Outputs
1 input + 1 output support for each address
Built-in short-circuit isolator helps maintain loop continuity.
Certified in accordance with EN 54-17 and EN 54-18 standards.
Offers a cost-effective solution for multi-module projects.

Standart	EN54-17, EN54-18
Loop Voltage Range	15V - 32V
Avrg. Current Consumption (Normal Op.)	80uA (@32V)
Avrg. Current Consumption (Alarm State)	95uA (@32V)
Operating Temperature Range	-10°C ~ +55°C (14°F ~ 131°F)
Humidity	95% RH (max)
Size (HxWxD)	164mm x 205mm x 64mm
Used Cable Cut	0.8mm ² ~ 1.5mm ²
Weight	500gr
Avrg. Current Consumption (Normal Op.) @24V	15uA
Vmax.	32V
Vnom.	24V
Vmin.	15V
Vso max	5V
Vso min	0.5V
Vsc_max.	27V
Vsc_min.	8V
Ic_max.	0,9A
Is_max.	1A
IL_max.	0,026A
Zc_max.	0,086Ω

Adressable Fire Alarm System

PDF

TFM-2441 Datasheet
